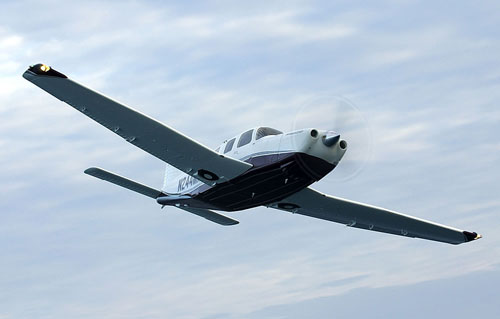

Saratoga II HP

The New Piper Aircraft, Inc.

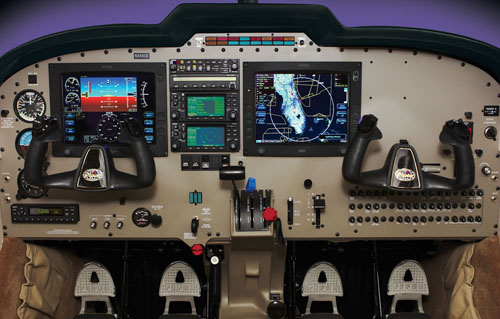

Приборная доска:

фотографии с сайта www.newpiper.com

STANDARD EQUIPPED LIST PRICE $529,200

ENGINE
Manufacturer Lycoming
Model IO-540-K1G5
Horsepower 300 hp
Number of Cylinders 6

PROPELLER
Manufacturer Hartzell
Number of Blades 3
Type Constant Speed

WEIGHTS
Maximum Take-off Weight 3,600 lbs/1,633 kg
Maximum Ramp Weight 3,615 lbs/1,640 kg
Standard Equipped Weight 2,411 lbs/1,094 kg

Standard Useful Load (a and b) 1,204 lbs/546 kg
a. Standard useful load is max ramp weight
minus standard equipped weight.
b. Useful load is indicated for a standard equipped aircraft.

DIMENSIONS
Wing Span 36.2 ft/11.0 m
Length 27.9 ft/8.5 m
Height 8.5 ft/2.6 m
Cabin Length 124.25 in/315.6 cm
Cabin Width 48.75 in/123.8 cm
Cabin Height 42.0 in/106.7 cm
Headroom (Seat to Ceiling)
 38 in/96.5 cm
 35.75 in/90.8 cm
 34.50 in/87.6 cm

WING AREA
Wing Area 178.3 ft2/16.56 m2

FUEL AND OIL CAPACITY
Usable Fuel 102 gal/386 liters
Oil Capacity 12 qts/11.4 liters

MAXIMUM SPEED TAS
Maximum Cruise Power 175 kts/324 km/h

CRUISING SPEEDS TAS
High Speed Cruise (@ 4,000 ft 166 kts/307 km/h
50° Rich of Peak EGT Mixture)

CRUISING RANGE TAS
Cruising range includes 45 minute fuel reserve at
long range power plus allowance for fuel used during
taxi, take-off, climb at maximum climb power, cruise
and descent

Long Range Cruise Power 859 nm/1,591 km

STALL SPEED
Flaps Full Down 40° 63 kias/117 km/h
 61 kcas/113 kn/h

SERVICE CEILING
100 FTM 15,588 ft/4,752 m

BAGGAGE
Volume
Forward Compartment 7 ft3/0.2 m3
Aft Compartment 17.3 ft3/0.49 m3

Capacity
Forward Compartment 100 lbs/45.4 kg
Aft Compartment 100 lbs/45.4 kg

TAKE-OFF DISTANCE
Ground Roll 1,200 ft/366 m
Total over 50 ft Obstacle 1,770 ft/539 m

LANDING DISTANCE
Ground Roll 640 ft/195 m
Total over 50 ft Obstacle 1,520 ft/463 m
